ER-032964

ProductionChuck 210

without base plate

To the watch list

Version

Chuck for high machining forces in chip cutting.

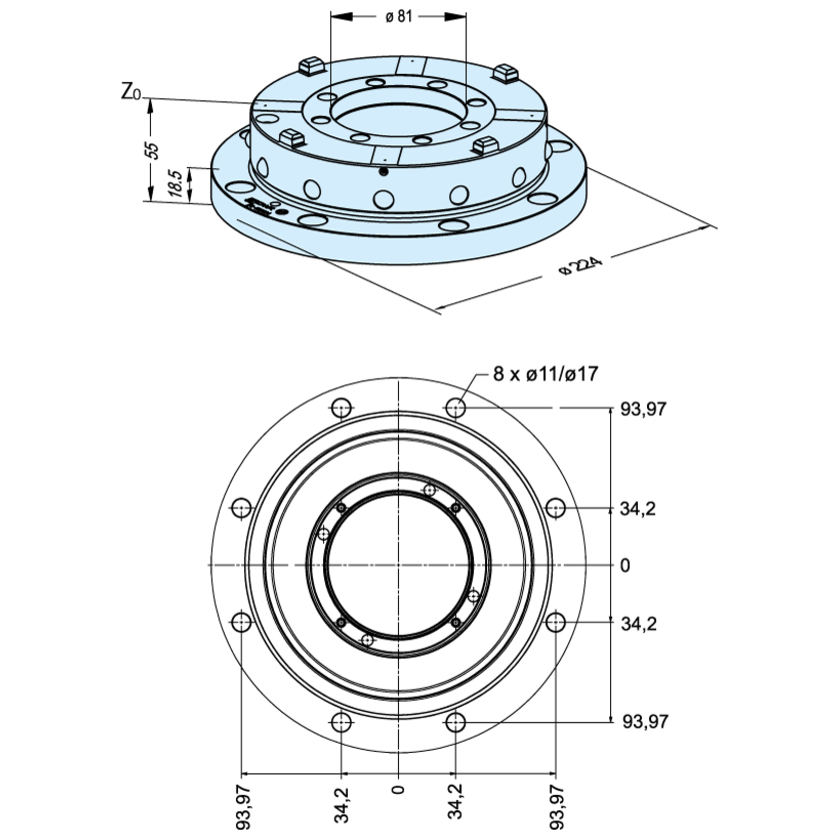

Low design. Through-borehole ø 81 mm.

Application

On milling machines, lathes and grinding machines. To clamp pallets PC 210.

Connections

2 air connections: on the sides and from below through customized base plate.

Operation

With air gun or control unit.

Note

Base plate must be customized.
